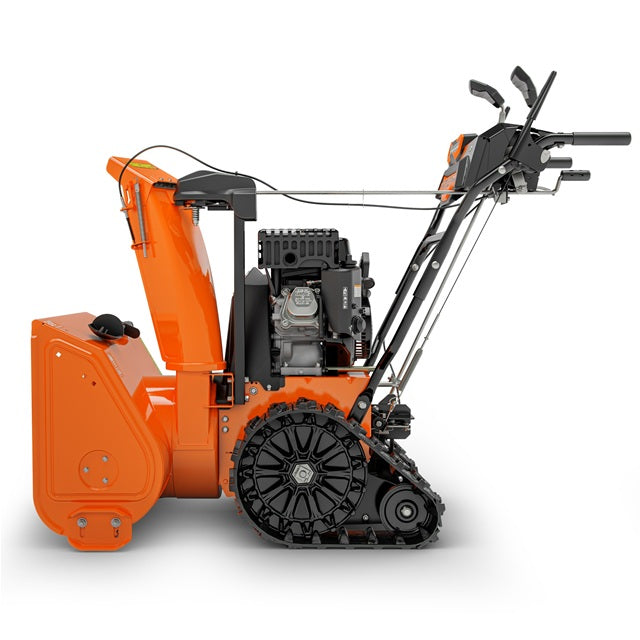

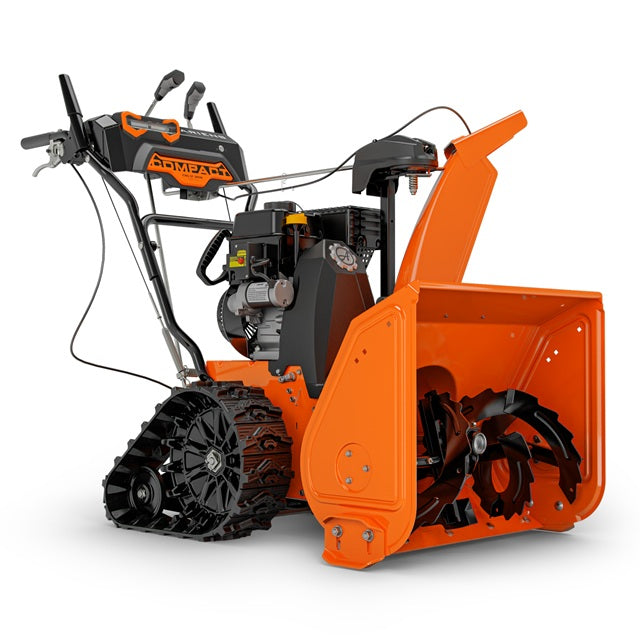

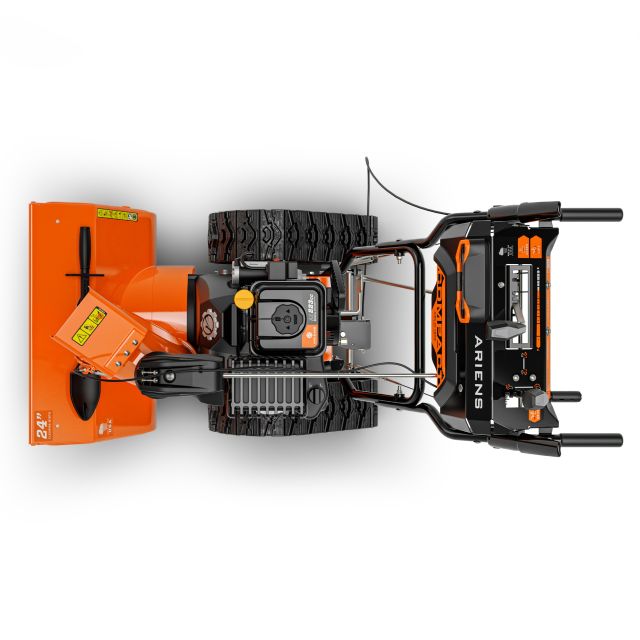

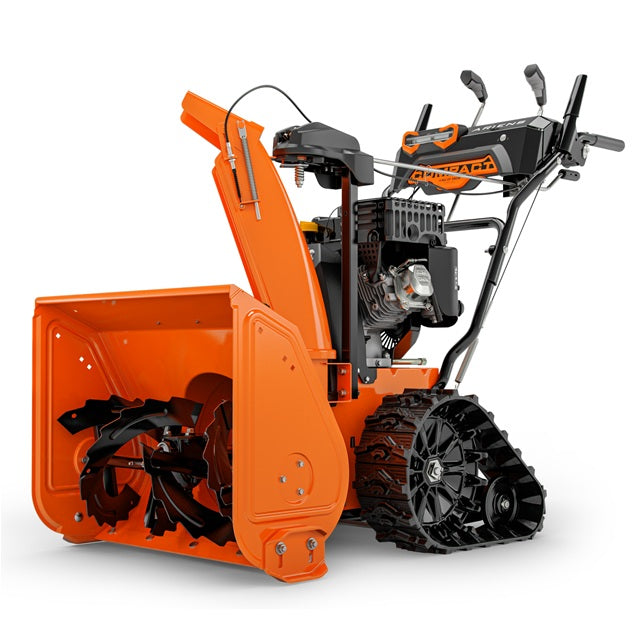

Ariens Compact 24 Rapidtrak 223cc Two-Stage Gas Snow Blower 920032
Limited Availability
THE VERSATILITY OF A WHEEL OR TRACK UNIT IN A SINGLE MACHINE.
An exclusive Ariens® technology, the RapidTrak™ system is an adjustable tracked or wheeled machine designed to provide users with unrivaled power and versatility for any condition. RapidTrak maintains traction even against high snow piles on hilly or slippery pavement while its wheeled setting provides quick, effortless maneuverability on flat surfaces. Its intuitive, user-friendly design allows operators to switch between settings in seconds.
- Ariens® AX 224CC engine with electric start
- Strong cast-iron gear case
- Ariens exclusive Rapidtrak™ technology is capable of tackling any terrain
Features
- RAPIDTRAK VERSATILITY - Three adjustable positions to tackle any winter scenario. Switch on-the-go between Track Mode (Pos. 1) for regular snow-clearing, Wheel Mode (Pos. 2) for maneuverability or Dig-In Mode (Pos. 3) for extra traction in deep snow and slippery conditions. The track lugs and large surface area bite into icy or steep surfaces, maintaining traction to power forward and send snow flying.
- MANEUVERABILITY & SPEED - Maximum maneuverability and speed that’s not typically found in track machines. With RapidTrak speed, operators quickly clear snow with traction, power and agility.
- UNDISPUTED POWER - Dig-In Mode gives operators full traction and a better housing angle to reach the pavement surface even with heavy piles of snow found at the end of the driveway.
- HYDROSTATIC DRIVE - Infinite speed control delivers torque quickly and efficiently to power through piles of snow. Available on certain models.
- AUTO TURN - Combines the power of a track machine with the zero-turn radius of a wheeled Sno-Thro®.
- POWERFUL ENGINE - The fully loaded Ariens AX engine provides the power to tackle any condition.
Specs
Power Train
Engine: Ariens AX®
Engine Displacement (in/cc): 224 cc
Starting System: 120v / Electric
Steering: Auto-Turn
Drive Type: Disc-O-matic
Speeds: 6 Forward/2 Reverse
Tire Type: Directional Snow Track
Clearing Specs
Clearing Width (in/cm): 24 In / 61cm
Housing Height: 20 In / 50.8cm
Throwing Distance: 3 ft - 40 ft
Chute Rotation: 2.5x Quick Turn
Chute Turning Radius: 205
Deflector Control: In-Dash Lever
Stage Type: Two Stage
Auger Diameter: 11 In / 27.9cm
Auger Type: Steel Serrated
Impeller Profile: Steel 3 Blade
Impeller Diameter: 12 In / 30.5cm
Skid Shoes: Steel Reversible
Scraper Bar: Steel Adjustable
Gear Case: Cast Iron
Dimensions
Length: 53.3 In / 135.4cm
Width: 26.4 In / 67.1cm
Height: 44 In / 111.8cm
Weight (assembled): 220 lb
Warranty
Product Warranty: 3 years residential use. 90 days commercial use
Gear Case Warranty: 5 Year Consumer, 1 Year Commercial
Accessories
Features at a Glance
Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
Track Drive: Standard
One Hand Interlock: Standard
